doors used in different industries like Food Industries, Pharma Industries, Chemical Industries, Process Industries, Textile Industries, Print &Packaging Industries, Fertilizer Industries, Automobile Industries and many more.

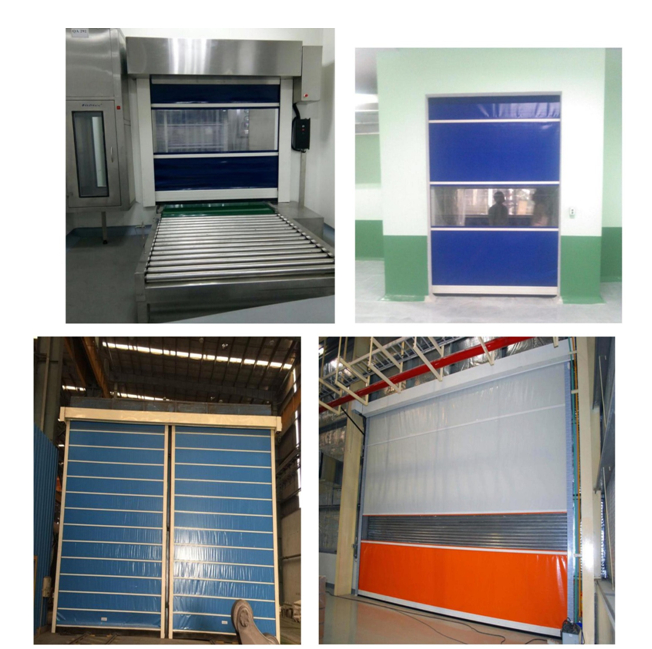

High Speed Door that opens and closes using a vertical pack away operation and it’s suitable for applications where high speed opening and closing times are required. Which save electricity, keep area dust free & control a room temperature
This type of door is suited for internal & external openings and is designed for prolonged everyday use with minimal maintenance.
In addition to operating at speeds 1.0 m/s, or adjustable speed model offers beneficial energy savings in both commercial and industrial applications in addition to reducing noise and eliminating dust from nearby work areas.
Longer Life Span
Very Flexible, High Tear Strength
High Dimensional Stability
UV Resistant & Flame Retardant
Resistant to Humid Environment
Reduces Energy cost
| Max .Passing Measurement | 9000 mm X H = 10000mm + |
|---|---|
| Min. passing Measurement | 0.900 mm X H = 1200mm |
| Operation Voltage | 230/400 V, 50Hz (III ph.) |
| Motor Power | 1.25 k/W |
| Control unit | IP 54/ IP 65 With Microprocessor |
| Max. Opening Speed | 1.0 m/sec. Max + - |
| Closing Speed | 1.0 m/sec |
| PVC Canvas | 900gsm / 1700gsm |
| Carrier Rail System | Aluminum |
| Safety Photocell | Yes |
| Manual | Yes |
| Safety Break | Yes |
| Automatic close | Yes |
| Pull Switch | Yes |
| Safety bottom edge | Yes |
| Application | Industries and Factories etc. |
| FABRIC PROPERTIES | ||
|---|---|---|
| Base Fabric | 100% Polyester | |
| Yarn | 1100dtex | |
| Weave | Panama Weave | |
| Total Weight | 900g/m2 | DINENISO2286/21998 |
| Lacquering | ACRYLIC-Both Sides |
| PHYSICAL PROPERTIES | ||
|---|---|---|
| Breaking Strength (warp/weft) | 4000/4000N/5cm | ENISO1421/11998 |
| Tear Strength (warp/weft) | 600/500N | DIN533632003 |
| Adhesion | 100N/5cm | ENISO24112000 |
| FLAMERETARDANCY | |
|---|---|
| Rating | < 100mm/min |
| DIN41021981 |
| OTHER PROPERTIES | ||
|---|---|---|
| Temperature Resistance | -30°C/+70°C | DINEN1876/21998 |
| Light fastness | 7-8 | ISO105B021988 |
